Manufacturer: Microchip

Product Category: 8-bit Microcontrollers - MCU

Core: PIC16

Program Memory Size: 7 kB

Data RAM Size: 256 B

Package / Case: SOIC-20

Maximum Clock Frequency: 20 MHz

ADC Resolution: 10 bit

Number of I/Os: 18 I/O

Supply Voltage - Min: 4.5 V

Supply Voltage - Max: 5.5 V

Mounting Style: SMD/SMT

Data Bus Width: 8 bit

Minimum Operating Temperature: - 40 C

Maximum Operating Temperature: + 85 C

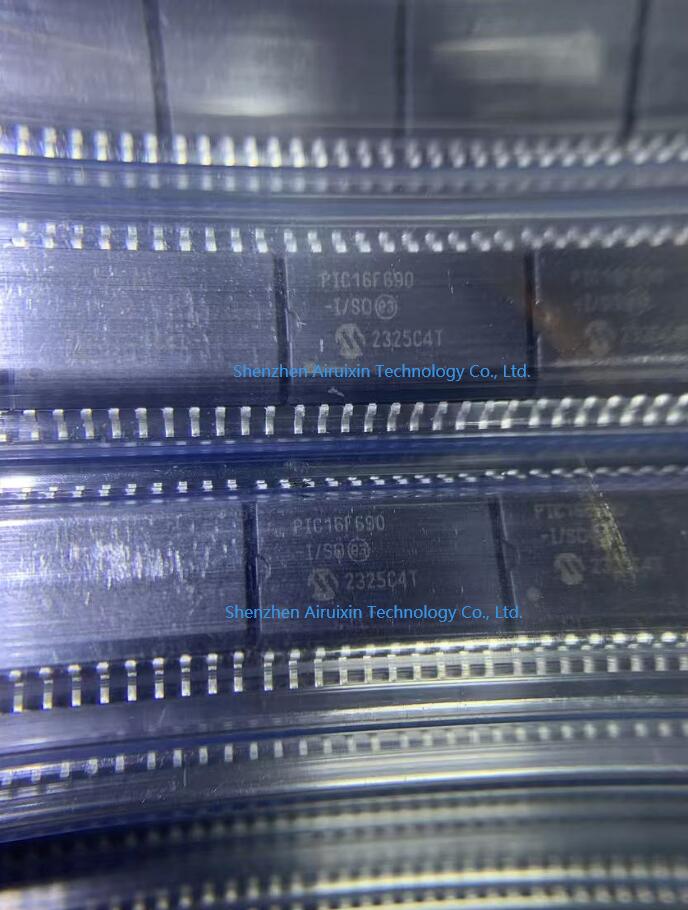

Series: PIC16F690

Packaging: Tube

Brand: Microchip Technology

Data ROM Size: 256 B

Height: 2.31 mm

Interface Type: EUSART, I2C, SPI, SSP

Length: 12.8 mm

Moisture Sensitive: Yes

Number of ADC Channels: 12 Channel

Number of Timers/Counters: 3 Timer

Processor Series: PIC16

Product: MCUs

Product Type: 8-bit Microcontrollers - MCU

Program Memory Type: Flash

Factory Pack Quantity: 38

Subcategory: Microcontrollers - MCU

Tradename: PIC

Width: 7.49 mm

Unit Weight: 0.028254 oz
